PCM-5350
Power Communications Monitor

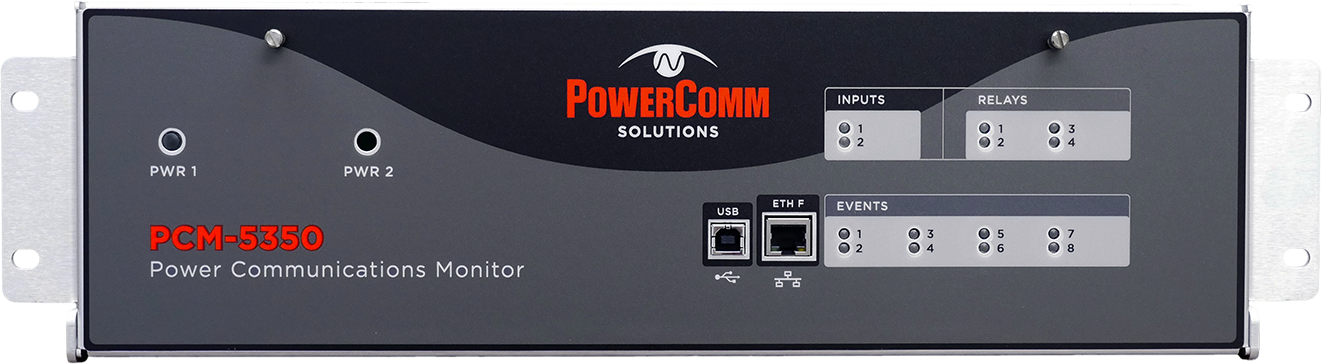

The PCM-5350 is an always-on monitor that provides deep, real-time visibility into PLC system performance. It serves as a permanent diagnostic window, helping you identify and analyze issues without the need to log into a transmitter-receiver or connect a test instrument.
Request A Quote Datasheet
The PCM-5350 is a five-channel, frequency-selective monitor designed for continuous, read-only observation of Power Line Carrier and Audio Tone protection systems. It captures real-time and event-driven measurements that help utility professionals diagnose mis-operations, evaluate system performance, and track gradual channel degradation over time. By providing full system visibility without requiring access to transmitters or receivers, the PCM-5350 supports secure, remote diagnostics and helps extend testing and maintenance cycles in alignment with NERC PRC-005 requirements.
Features
- Mult-Channel
- Monitor up to five channels, each programmable for Frequency, Bandwidth and Function Type (2- FSK, 3-FSK, ON-OFF or Noise).
- Spectral Analysis
- Capture event driven or real-time spectral analysis of the communication path. Event driven captures can record up to 400 ms of pre-event spectral data.
- Trending
- Trend reflected power, level & noise to monitor for gradual channel degradation.
- Flexible Alarming
- Program Alarm Outputs and Front Panel LED’s for any event type or program an alarm output for multiple event types.
- Event Recorder
- Record up to 32,000 time stamped events based on changes in frequency, level, reflected power & noise.
- Real-Time View
- Extend maintenance cycles by remotely accessing real-time measurements and a time stamped status report of all channels.
- Measurement Accuracy
- Accurate measurements of reflected power and level changes by installing between the last hybrid and line tuner.
- Remote Access
- The PCM-5350 cannot affect the existing protection system parameters (for example Guard & Trip frequencies). Designed to be your primary remote source for critical communication data.
Use Cases
- Mis-operation evaluation and diagnosis.
- Review captured in-band spectral analysis of trip/fault occurrence for noise intrusion.
- Accurately measure and monitor reflected power and level changes by installing between last hybrid and line tuner.
- Set alarms and record events for level and reflected power changes.
- Set out-of-band noise detection alarms.
- Initiate remote keying of ON-OFF carrier for capture of signal level and reflected power.
- Monitor Audio Tone Communication Circuits used for tone pilot protection.
| RF Inputs | |
|---|---|
| Frequency Accuracy | ±3ppm, ±5ppm max for 10 years |
| Frequency Temperature Stability | ±1.5ppm |
| Tuning Accuracy | 1 Hz |
| Frequency Display Resolution | 7 Digit; 1 Hz |
| Amplitude Accuracy | ±0.1 dB |
| Insertion Loss | 0.1 dB |
| Bridged Z | 1Ω to 9999Ω |
| Bandwidths | 10 kHz; 1200 Hz (±500); 600 Hz (±250); 360 Hz (±150); 240 Hz (±100); 180 Hz (±75); Wideband (30 kHz – 600 kHz) |
| Power Line Carrier Configuration | |
| Connection Type | BNC and UHF |
| Frequency Range | 30 kHz to 500 kHz |
| Max Input | 206 Vrms / 292 Vp; 2.0 Arms max |
| Audio Tone Configuration | |
| Connection Type | Terminal Blocks |
| Frequency Range | 300 Hz to 4 kHz |
| Max Input | 10 Vrms |
| Power Supply | |
| Input Voltage | 24, 48, 125, or 250 Vdc |
| Power Requirements | 7 Watts |
| Redundancy | Optional |
| Inputs | |
| Type | 2 Inputs - Optically Isolated |
| Voltages | Jumper Configurable: 5, 24, 48, 125, or 250 Vdc |
| Outputs & Alarms | |
| Relays | 4 Programmable Solid State, 125Vdc @ 1A |
| Power Fail | 2 Form C, 125Vdc @ 0.5A |
| LEDs | 8 Event Programmable (Red); 4 Relay Status (Red); 2 Input Status (Red); 1 Power Status (Green) |
| IRIG-B Timecode Input | |
| Connector | 1 REAR, BNC |
| Signal Type | Software Programmable for Modulated (10Vpp max) or Unmodulated (5V TTL) |
| Measurements | |
| Voltage Level | dBm and Vrms |
| Current | Arms |
| Power | Watts |
| SWR | Ratio, dB and Percent |
| Bridge Z | Ohms |
| Bandwidth | Hz |
| Communication Ports | |
| USB | 1 FRONT, Type B, 12 Mbps (v2.0) |
| Ethernet | 1 FRONT, 1 REAR, RJ-45, 10BASE-T / 100BASE-TX |
| RS-422/485 | 1 REAR, Terminal Block, 9600 - 115200 baud |
| RS-232 | 1 REAR, 9 Pin D-sub, 9600 - 115200 baud |
| Environmental | |
| Temperature Range | -20°C to +60°C |
| Relative Humidity | 95% Max, non-condensing @ +40°C (104°F) |
