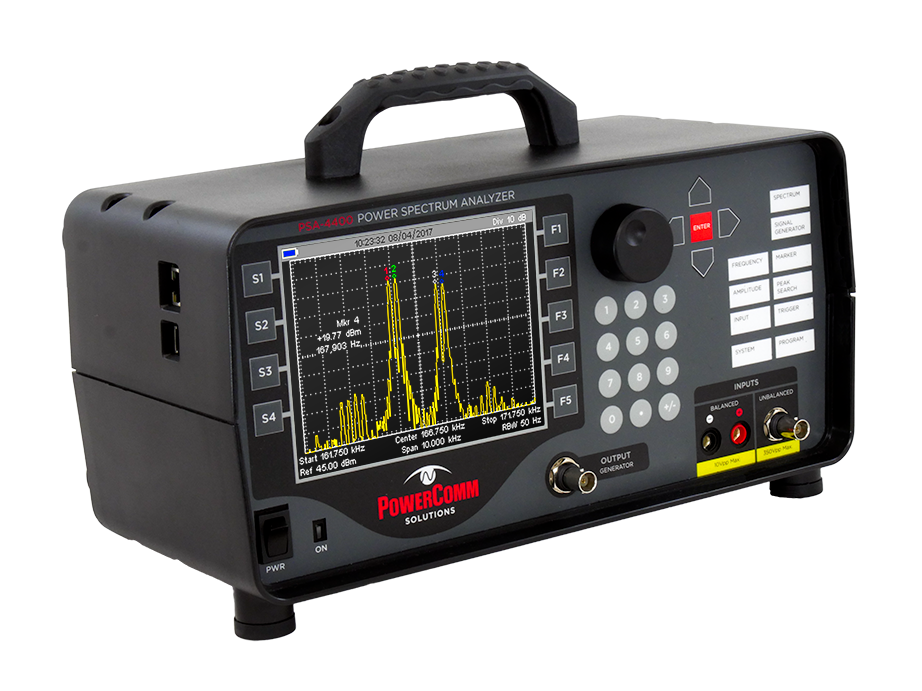

PSA-4400
Power Spectrum Analyzer
Purpose-built for electric utility system protection applications. The first spectrum analyzer capable of measuring over 100 watts of power with no external devices required, and the only spectrum analyzer with selectable impedances of 50, 75 & 600 Ohms terminated plus high impedance bridging. Configurable in DFT or Swept mode with a frequency range of 10 Hz to 5 MHz, it covers both power line carrier and audio tone protection communications.
Frequency range
10 Hz – 5 MHz
Input power
100+ Watts
Impedance
50 / 75 / 600 Ω
Generator output
Up to 1W
Spectrum Analysis Built for Carrier
The PSA-4400 was specifically designed to support electric utility system protection applications. With a frequency range of 10 Hz to 5 MHz, it is ideal for checking the integrity of audio tone or power line carrier protection communication paths. It is the first spectrum analyzer capable of measuring over 100 watts of power with no additional external devices required. Configurable in either Discrete Fourier Transform (DFT) or Swept mode, features like the "as left reference overlay" help quickly identify changes to the path, including noise intrusion or new frequencies that can adversely affect protection channels.
Selectable Impedance for PLC & Audio Tone
The only spectrum analyzer with selectable impedances of 50, 75 & 600 Ohms terminated, as well as a high impedance mode for bridging measurements. The unbalanced BNC input handles PLC frequencies up to 125 Vrms and 12 watts on 50 or 75 Ohm settings. The balanced banana jack input at 600 Ohms is ideal for audio tone protection applications.
50, 75, 600 Ω
+ High Impedance
125 Vrms
Max Input
Built‑In Tracking Generator with FSK Programmability
The PSA-4400 output generator is not only a tracking generator, but was also designed to simulate typical teleprotection transmitters. The generator output is capable of up to 1 watt into 50 or 75 Ohms and can produce two independent frequencies to simulate dual transfer trip applications. The 600 Ohm setting is ideal for audio tone protection applications. The outputs and FSK functionality can be programmed for unlimited variations of one or both frequencies to help test the alignment and integrity of the receiver settings and logic.
Need it for a project?
Rent the PSA-4400 on a daily, weekly, or monthly basis.
| General | |
|---|---|
| Frequency range | 10 Hz to 5 MHz |
| Frequency accuracy | ±3 ppm, ±5 ppm max for 10 years |
| Frequency temperature stability | ±1.5 ppm |
| Frequency resolution | 1 Hz |
| Frequency display resolution | 7 digit |
| Analysis bandwidth | 500 Hz, 5 kHz, 50 kHz, 500 kHz, 5 MHz |
| Resolution bandwidth (RBW) | DFT: 1 Hz to 1 MHz; Swept: 10 Hz to 3 kHz |
| Swept time | 10 Hz: 20 sec; 30 Hz: 10 sec; 100 Hz: 4 sec; 300 Hz: 2 sec; 1 kHz: 1 sec; 3 kHz: 1 sec |
| Amplitude accuracy | ±0.5 dBm |
| Ref level | +99 dBm to -99 dBm |
| Scale/Div | 10, 5, 2, 1 dB/division |
| Input ranges | 100V, 30V, 10V, 3V, 1V, 300 mV, 100 mV, 30 mV, 10 mV, 3 mV, 1 mV |
| Ref Z | 1 Ω to 999 Ω |
| Display points | 300 max |
| Inputs — Unbalanced | |
| Connector type | BNC |
| Impedance | 50 Ω, 75 Ω, or High Impedance (< 1.75 Vp: 1 MΩ; > 1.75 Vp: 40 KΩ) |
| Level | 10 Hz to 5 MHz; 125 Vrms max (176 Vp max), 100 Vdc max; 50 Ω or 75 Ω (12 Watts) |
| Inputs — Balanced | |
| Connector type | Banana Jack |
| Impedance | 600 Ω or High Impedance (1 MΩ) |
| Level | 10 Hz to 300 kHz; 7.07 Vrms max (10 Vp max), 10 Vdc max; 600 Ω (1 Watt) |
| Output Generator | |
| Connector type | BNC (Unbalanced) |
| Amplitude accuracy | ±0.1 dB |
| Tuning accuracy | 1 Hz |
| Display | dBm & VRMS |
| Impedance | 50 Ω, 75 Ω & 600 Ω |
| Level | 50 Ω / 75 Ω: 7.07 Vrms (1 Watt) to 1 mVrms; 50 Ω / 75 Ω / 600 Ω: 3.535 Vrms (0.25 Watt) to 1 mVrms |
| Frequency range | 50 Ω / 75 Ω: 30 kHz to 1 MHz; 50 Ω / 75 Ω / 600 Ω: 10 Hz to 5 MHz |
| Trigger | |
| Source | Auto, Button, or External |
| Length | > 50 µs |
| External level threshold | Low to High: 2.4 V; High to Low: 0.7 V |
| Communication Ports | |
| USB | Type B, 12 Mbps (v2.0) |
| Ethernet | RJ-45, 10BASE-T / 100BASE-TX |
| Environmental | |
| Temperature range | -20°C to +60°C |
| Relative humidity | 95% max, non-condensing @ +40°C (104°F) |
{{ group.group }}
Every PSA-4400 ships in a rugged carrying case with everything needed for field deployment.
Open carrying case — PSA-4400 with all accessories
| Item | Part Number | Qty | Notes |
|---|---|---|---|
| PSA-4400 Spectrum Analyzer | PSA-4400 | ×1 | Main unit with battery installed |
| AC Power Adapter | ACA-4400 | ×1 | 100–240 VAC universal adapter |
| BNC Test Cable, 50Ω, 3 ft | CBL-BNC-3 | ×2 | Shielded, BNC-to-BNC |
| BNC-to-N Adapter | ADP-BNC-N | ×1 | — |
| USB Data Cable | CBL-USB-6 | ×1 | USB-A to USB-B, 6 ft |
| Ethernet Cable | CBL-ETH-6 | ×1 | Cat5e, 6 ft |
| Quick Start Guide | DOC-QSG-4400 | ×1 | Printed reference card |
| Calibration Certificate | CAL-CERT-4400 | ×1 | Factory calibration with traceability |
| Carrying Case | CASE-4400 | ×1 | Rugged hard-shell case with foam inserts |
| Description | Part Number |
|---|---|
| Base unit with carrying case | PSA-4400 |
| Replacement battery | BAT-4400 |
| Replacement AC adapter | ACA-4400 |
| BNC test cable (3 ft, 50Ω) | CBL-BNC-3 |
| Extended warranty (3 year) | EW-4400-3 |
